90 Degree Union Elbow
$26.02 – $128.90
Use to connect two equal pieces of pipe 20-63mm. Use a union in conjunction with an Infinity™ Stem adapter or a body reducer to create either threaded or reduction connections.
- Description
- Additional information
Description

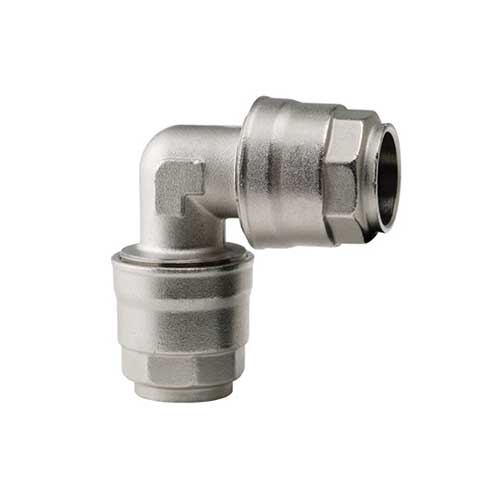

Infinity™ 90 Degree Union Elbow
Use to connect two equal pieces of pipe 20-63mm. Use a union in conjunction with an Infinity™ Stem adapter or a body reducer to create either threaded or reduction connections.
| PART NUMBER | D | B | C | E | L | CH1 | CH2 |
| 90130-20 | 20 | 31,5 | 19 | 34,5 | 51 | 21 | 30 |
| 90130-25 | 25 | 38,5 | 23 | 42,5 | 61.5 | 26 | 35 |
| 90130-32 | 32 | 46 | 28 | 52 | 74.5 | 34 | 45 |
| 90130-40 | 40 | 52 | 34 | 63 | 86.5 | 41 | 55 |
| 90130-50 | 50 | 63,5 | 40.5 | 73 | 104 | 50 | 65 |
| 90130-63 | 63 | 57,5 | 55.5 | 94 | 113 | 73 | 75 |
The heart of Infinity™ is solid brass, nickel-plated fittings that make the system easy to use and install. Infinity’s™ powder-coated aluminum tubing is so light, it can be handled and installed by one person, and when coupled with high-quality brass fittings, the system yields unbeatable performance, reliability and safety
Infinity™ 90 Degree Union Elbow Configuration
INFINITY’S™ UNIQUE ADVANTAGES
- Fittings can be disconnected and reconnected for reuse
- Ready to install, Push-to connect pre-torqued fittings (20mm-40mm)
- Leak-free connectors provide an immediate seal
- Corrosion-free Aluminum Tubing, 10 X lighter than traditional piping systems
