Elevation Threaded Adapters

Elevation Threaded Adapters

Elevation Threaded Adapters

$38.06$184.54

In stock

$38.06$184.54

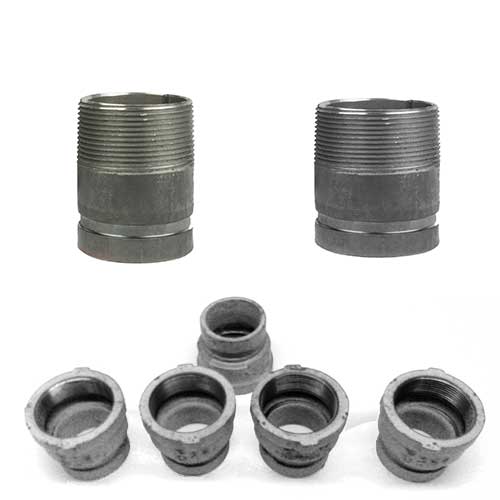

Elevation Threaded Adapters are available in both Male NPT and Female NPT connections. Use with 73, 90 or 115mm tube.

Clear

Description

Elevation Threaded Adapters

Threaded Adapters are available in both Male NPT and Female NPT connections. Use with 73, 90 or 115mm tube. Use an Elevation Coupling to connect to the pipe end.

ADAPTERS

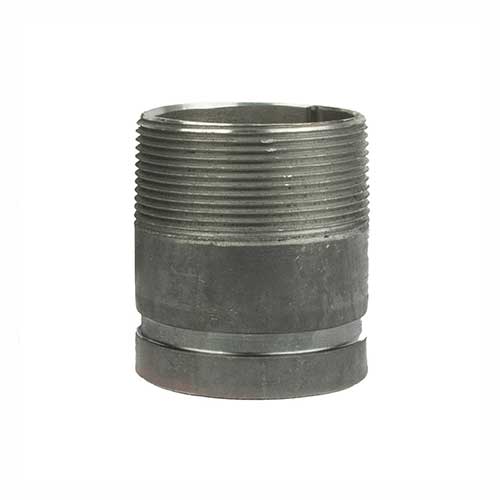

NPT Male (M) or
NPT Female (F)
Supplied without
Coupling
73mm tube > 1-1⁄2” M 100011-70-24
73mm tube > 2” M 100011-70-32
73mm tube > 2-1⁄2” M 100011-70-40
73mm tube > 2-1⁄2” F 100011-70-40-F
90mm tube > 1-1⁄2” M 100011-90-24
90mm tube > 2” M 100011-90-32
90mm tube > 2-1⁄2” M 100011-90-40
90mm tube > 3” M 100011-90-48
90mm tube > 3” F 100011-90-48-F
115mm tube > 2” M 100011-115-32
115mm tube > 2-1⁄2” M 100011-115-40
115mm tube > 3” M 100011-115-48
115mm tube > 4” M 100011-115-64
115mm tube > 4” F 100011-115-64-F

Elevation provides a simple solution for large air/gas/vacuum users and is, without a doubt, the easiest and fastest system to install. It has the lowest cost of ownership and the best quality of media delivery available.

Additional information

Diameter

, ,

Series

NPT

1 1/2 Inch, 2 Inch, 2 1/2 Inch, 3 Inch, 4 Inch

Thread

NPT Female, NPT Male
