Straight Union
$25.46 – $121.73
Infinity™ Straight Union used to connect 2 equal sticks of 20mm-63mm pipe. Can be used in conjunction with a stem adapter or body reducer.
- Description
- Additional information
Description

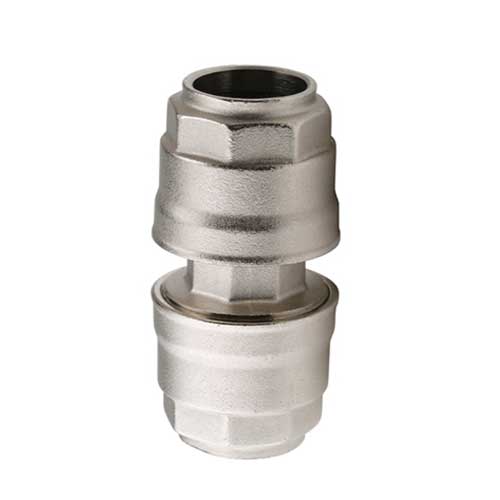

Infinity™ Straight Union Connection

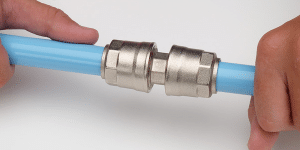

Use to connect two equal pieces of pipe 20-63mm. Use a union in conjunction with an Infinity™ Stem adapter or a body reducer to create either threaded or straight reduction connections.

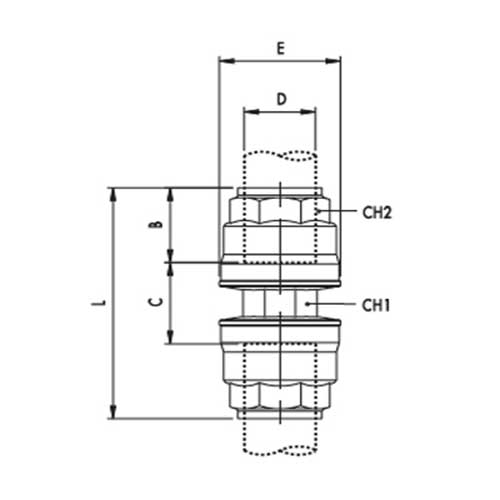

| PART NUMBER | D | B | C | E | L | CH1 | CH2 |
| 90040-20 | 20 | 31,5 | 14.5 | 34,5 | 76.5 | 21 | 30 |
| 90040-25 | 25 | 38,5 | 13.5 | 42,5 | 90.5 | 26 | 35 |
| 90040-32 | 32 | 46 | 14.5 | 52 | 106.5 | 32 | 45 |
| 90040-40 | 40 | 52 | 21 | 63 | 125 | 41 | 55 |
| 90040-50 | 50 | 63,5 | 21.5 | 73 | 148.5 | 50 | 65 |
| 90040-63 | 63 | 57,5 | 44 | 94 | 159 | 73 | 75 |
The heart of Infinity™ is solid brass, nickel-plated fittings that make the system easy to use and install. Infinity’s™ powder-coated aluminum tubing is so light, it can be handled and installed by one person, and when coupled with high-quality brass fittings, the system yields unbeatable performance, reliability and safety
INFINITY’S™ UNIQUE ADVANTAGES
- Fittings can be disconnected and reconnected for reuse
- Ready to install, Push-to connect pre-torqued fittings (20mm-40mm)
- Leak-free connectors provide an immediate seal
- Corrosion-free Aluminum Tubing, 10 X lighter than traditional piping systems
