Description

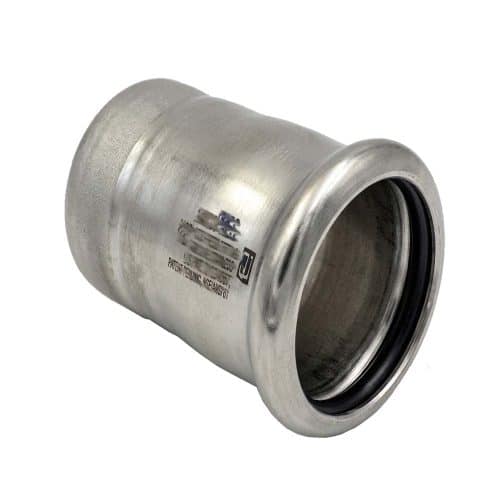

TruPress Stainless Steel Stop End

Press Fitting System Series 15mm Stop End TO 108mm Stop End

The TruPress, Press Fitting System provides a comprehensive solution for joining tubing for fluid and gas systems through mechanical press connections.

TruPress uses the M-Profile press connection method. The pipe is inserted into the fitting to the proper insertion depth, then pressed using an approved tool with the correct jaws or collars. This creates a dual-plane compression that forms a strong mechanical joint and maintains a reliable, permanently elastic seal at the O-ring.

Pipping and Tubing

TruPress stainless steel tubing is longitudinally welded, thin-walled pipe available in 316L and 304L materials.

Max Pressure: 232 psi
Max Temperature: EPDM seal: 248°F | FKM seal: 428°F

Pipes are supplied in 19’-6” standard lengths with end caps to prevent contamination. All tubing is free of annealing color and surface impurities for optimal corrosion resistance and clean installation.

Pressing Tools and Equipment

Pressing must be performed with approved TruPress-compatible tools.

• 1/2”–1-1/4”: Press using jaws
• 1-1/2” and larger: Press using collars or chains

Pressing should only be done within the following ambient temperature ranges:

• Battery tools: 14°F to 104°F

Description	Part Number
15mm End Stop	TS20-15
22mm End Stop	TS20-22
28mm End Stop	TS20-28
42mm End Stop	TS20-42
54mm End Stop	TS20-54
76mm End Stop	TS20-76
88mm End Stop	TS20-88
108mm End Stop	TS20-108
168mm End Stop	TS20-168

TruPress is suitable for a wide variety of fluid and gas systems including:

• Potable and treated water systems (EPDM)
• Hydronic heating (EPDM)
• Cooling and refrigeration (EPDM/FKM)
• Compressed air and inert gases (EPDM/FKM)
• Natural gas and LPG (HNBR)
• Solar, vacuum, and steam service (FKM or white seals)
• Fire protection and sprinkler installations (EPDM, above-ground only)
