Reducer Fitting Body to Tube
$19.46 – $130.01
The body to tube is a versatile piece that connects to an Infinity fitting to make a reduction point. Use with almost any fitting to create ununiform tees, inline reduction unions, reduction elbows or anything you might run across.
- Description
- Additional information
Description
Reducer Fitting Body to Tube
The body to tube is a versatile piece that connects to an Infinity™ fitting to make a reduction point. Use with almost any fitting to create ununiform tees, inline reduction unions, reduction elbows or anything you might run across.

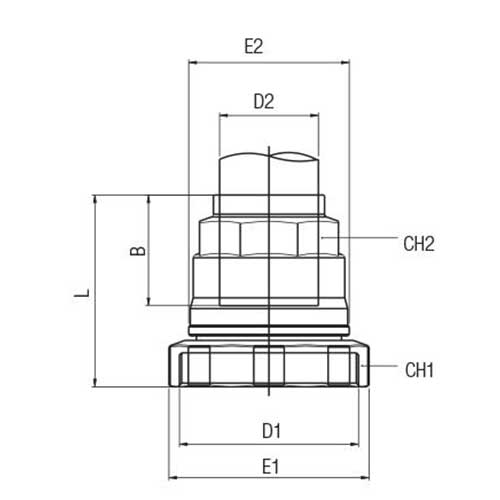

| PART NUMBER | D1 | D2 | B | E1 | E2 | L | CH1 | CH2 |
| 90620-25-20 | 25 | 20 | 31,5 | 43,5 | 34,5 | 48 | 42 | 30 |
| 90620-32-20 | 32 | 20 | 31,5 | 54 | 34,5 | 48.5 | 52 | 30 |
| 90620-32-25 | 32 | 25 | 38,5 | 54 | 42,5 | 55 | 52 | 35 |
| 90620-40-20 | 40 | 20 | 31,5 | 65 | 34,5 | 50 | 63 | 30 |
| 90620-40-25 | 40 | 25 | 38,5 | 65 | 42,5 | 56.5 | 63 | 35 |
| 90620-40-32 | 40 | 32 | 46 | 65 | 52 | 63.5 | 63 | 45 |
| 90620-50-25 | 50 | 25 | 38,5 | 75 | 42,5 | 55 | 73 | 35 |
| 90620-50-32 | 50 | 32 | 46 | 75 | 52 | 63.5 | 73 | 45 |
| 90620-50-40 | 50 | 40 | 52 | 75 | 63 | 69 | 73 | 55 |
| 90620-63-40 | 63 | 40 | 52 | 95 | 63 | 82.5 | 92 | 55 |
| 90620-63-50 | 63 | 50 | 63,5 | 95 | 73 | 92.5 | 92 | 65 |
The heart of Infinity™ is solid brass, nickel-plated fittings that make the system easy to use and install. Infinity’s™ powder-coated aluminum tubing is so light, it can be handled and installed by one person, and when coupled with high-quality brass fittings, the system yields unbeatable performance, reliability and safety
INFINITY’S™ UNIQUE ADVANTAGES
- Fittings can be disconnected and reconnected for reuse
- Ready to install, Push-to connect pre-torqued fittings (20mm-40mm)
- Leak-free connectors provide an immediate seal
- Corrosion-free Aluminum Tubing, 10 X lighter than traditional piping systems
The Body to Tube Reducer can be used with an Infinity™ Straight Union for in-line reduction, or used with an Infinity™ Tee, Elbow, Ball Valve or Male Threaded Connector for ultimate flexibility. Simply replace the nut on the outlet side of the fitting to reduce down to the required pipe sized. The Body to Tube Reducer can be used to create over 125 reducing fitting combinations.
